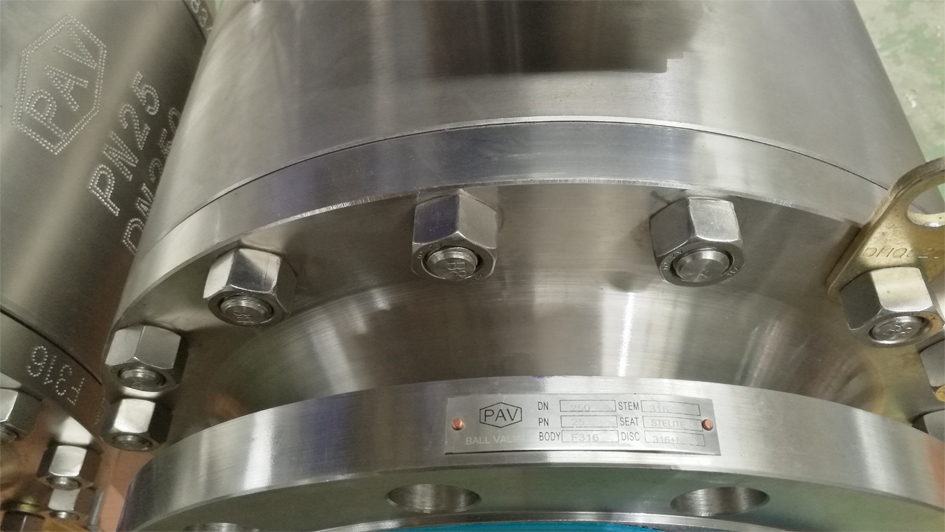

Forged Trunnion ball valve

Product Numbers: Fig:BV101

Product introduction: 1/4 Turn valve,Trunnion mounted ball valve are widely used for various industries,such as oil,gas and chemistry etc.full port is one obvious advantage compared to some other valves.Forged steel body assures uniform the grain structure and toughness free from inevitable casting defects,such as porosity,abscess,sand hole, loosen,slag inclusion,crackle etc.Flanschkugelhahn.Válvulas de bola.Kugleventiler.Kogelkranen.Primary metal secondary soft,Split Body Ball Valves.DuraSeat | Double Block & Bleed Seats,Trunion Mounted Ball Valve,spherical valve

DESCRIPTION

Features(side enter ball valve)(Split Body Ball Valves)(Trunion Mounted Ball Valve)
1. Three pieces design for forged body,Three Piece Body Ball Valve,1/4 Turn valve
2. Fire-safe, antistatic and blow-out proof stem functions
3. Up stream sealing,down stream sealing,double sealing
4. Self relieving seat
5. Double block and bleed(DBB) function(Double Block and Bleed valve) or DIB
6. Emergency sealant injection system
7. Stem/bonnet extension for cryogenic service
8.Regular bore & Full Bore Ball Valves
Operation type
Handwheel,Gear, Electric actuator,Pneumatic actuator,Bare stem
Standard

Design and Manufacture: API 6D,API608,BS5351 or ASME B16.34
Inspection and Test: API 598/API 6D
End flange dimension: ASME B16.5,ASME B16.47(API 605 ,MSS SP44)
Butt weld end dimension: ASME B16.25(BW)
Face to face,end to end: ASME B16.10/API 6D
Pressure-temperature ratings: ASME B16.34
NACE: NACE 0175
Material
ASTM A105,A182 F304 304L 316 316L 321 F11 F22,A350 LF2 LF1 LF3 or by customers
(Cast Steel, Alloy Steel, Stainless Steel, Special Steel)
